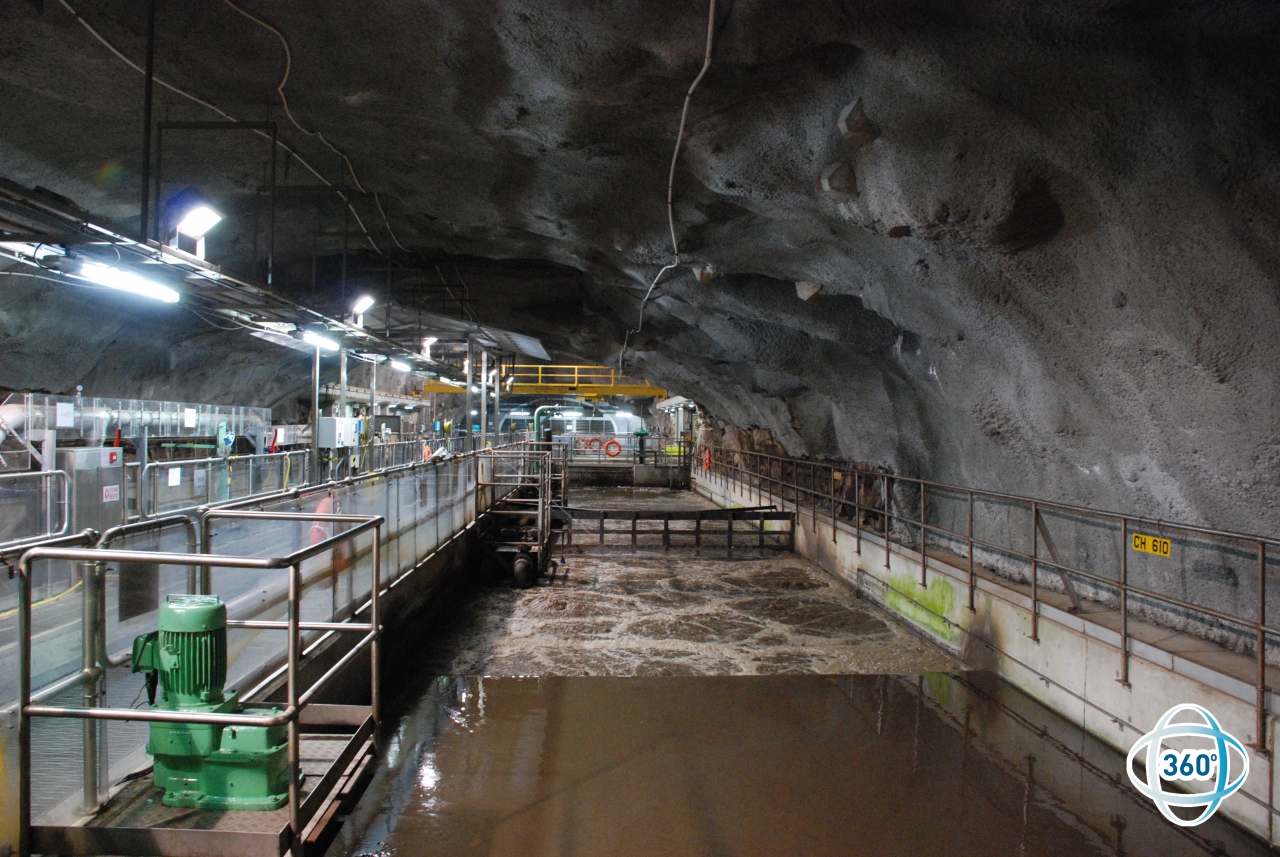

Stanley Sewage Treatment Works Virtual Tour

Stanley Sewage Treatment Works

Stanley Sewage Treatment Works

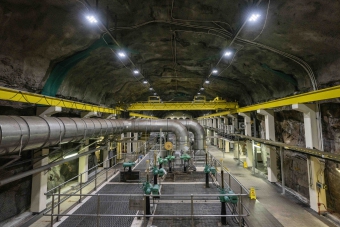

Stanley Sewage Treatment Works (Stanley STW) is a secondary sewage treatment works built in caverns. It serves a population of over 27,000 in Stanley, Tai Tam, Chung Hom Kok, Ma Hang and Red Hill areas, which currently produces around 9,000 cubic metres of sewage per day. Sewage is collected by outlying sewage pumping stations and transferred to the STW for further treatment.

To maintain the natural environment of the area, latest cavern construction technology was adopted in the design and construction of Stanley STW at the time. It was housed inside three large caverns, each about 120 metres long, 15 metres wide and 17 metres tall together with over 450 metres of access road, ventilation tunnels and shafts. Not only visually unobtrusive, the underground STW has also spared the neighbourhood from undesirable environmental impact both during its construction and daily operation. The STW was the first of its kind in Southeast Asia.

The construction of Stanley STW began in November 1990 and was completed in February 1995. The design capacity is 11,600 cubic metres per day.

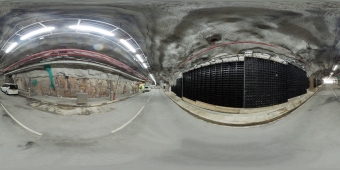

Stanley Sewage Treatment Works Access Tunnel (360° View)

Stanley Sewage Treatment Works Access Tunnel (360° View)

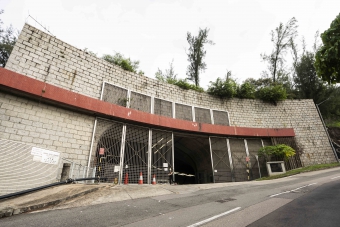

Stanley Sewage Treatment Works

Stanley Sewage Treatment Works

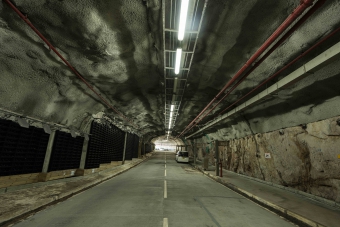

Stanley Sewage Treatment Works Access Tunnel

Stanley Sewage Treatment Works Access Tunnel

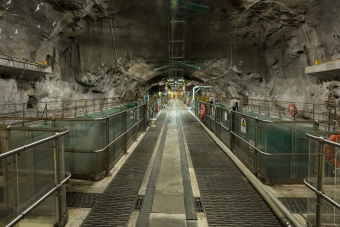

Stanley Sewage Treatment Works

Stanley Sewage Treatment Works

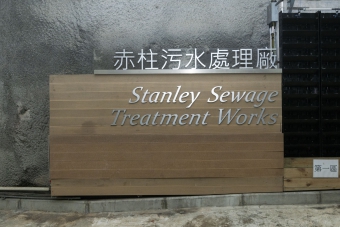

Stanley Sewage Treatment Works

Stanley Sewage Treatment Works

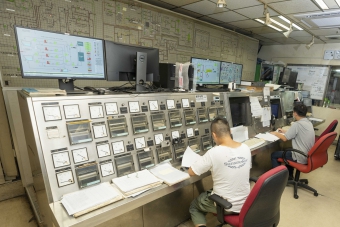

Stanley Sewage Treatment Works Control Room

Stanley Sewage Treatment Works Control Room

The treatment process is controlled by a sophisticated computer system. Field instruments installed at the selected locations in the treatment plant transmit information on the sewage flow, the air flow and status of various aspects of the treatment process to the system control room. The system goes through a decision making programme based on the control philosophy of each element and sends out signals to the various controlling devices to regulate operational conditions. It also facilitates convenient data display and allows plant operators to intervene the control of the process as well as outlying pumping station facilities.

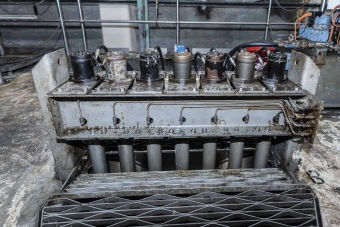

Coarse Screens

Coarse Screens

Raw sewage is first transported to the inlet works through sewer for preliminarily treatment. The main purpose of screening is to remove large objects inside the sewage to protect the downstream equipment. There are two types of screens in Stanley STW: coarse screen (with 75 millimetres spacing) and fine screen (with 6 millimetres spacing) for the removal of different sizes of objects to enhance the effectiveness and protection of electrical and mechanical equipment.

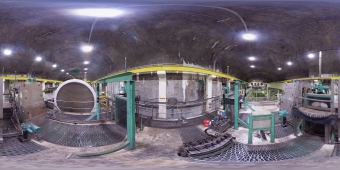

Preliminary Treatment Facilities (360° View)

Preliminary Treatment Facilities (360° View)

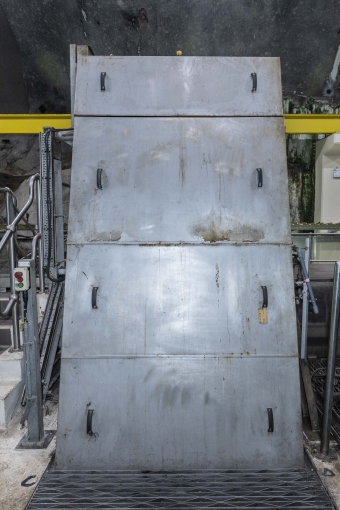

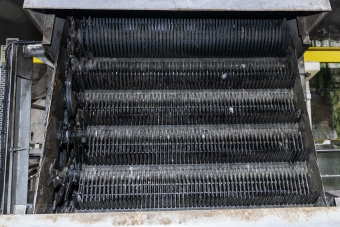

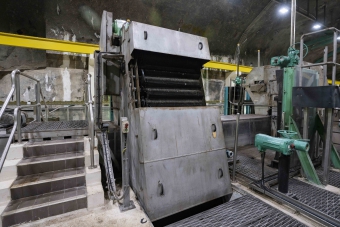

Fine Screens

Fine Screens

Fine Screens

Fine Screens

Fine Screens

Fine Screens

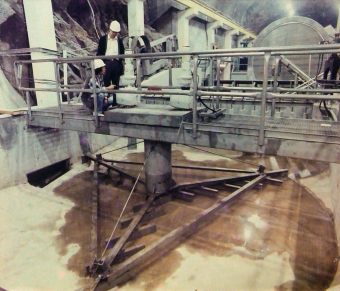

Detritor

Detritor

The key objectives of installing grit removal facilities are to avoid progressive accumulation of sediment in sewage conveyance system and to eliminate coarse suspended solids which may cause excessive wear or clogging. After screening, the sewage passes through a detritor, in which grit in sewage settles and grit with diameter larger than 0.2 millimetes is removed by a grit classifier.

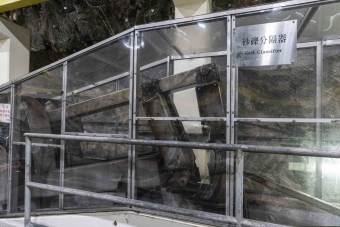

Grit Classifier

Grit Classifier

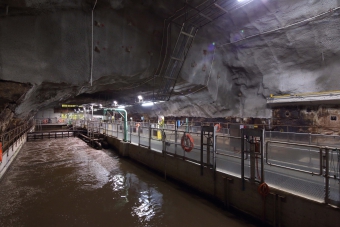

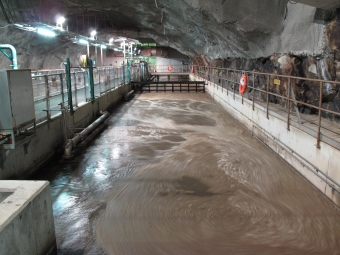

Aeration Tank

Aeration Tank

After screening and degritting, the sewage flows through the aeration tanks for secondary (biological) treatment. Organics in the sewage will be degraded by micro-organisms. In aeration tanks, compressed air is fed continuously by air diffuser to provide oxygen essential to sustain the growth of micro-organisms (activated sludge), and keep the micro-organisms in suspension during the treatment process. The retention time at aeration tank is about 15 hours.

Stanley Sewage Treatment Works also adopts the hybrid bio-technology, that is, simultaneous application of activated sludge method and moving bed biofilm method, for treating sewage. A large number of 25-millimetre-diameter multi-faceted plastic particles are added to the aeration tank to serve as a "biological carrier" for the microorganisms to colonize, providing more living area for the microorganisms, thereby increasing the efficiency of sewage treatment.

Aeration Tank

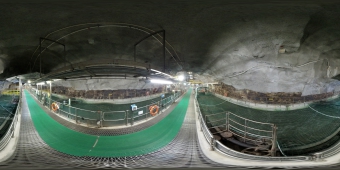

Aeration Tank (360° View)

Aeration Tank

Aeration Tank

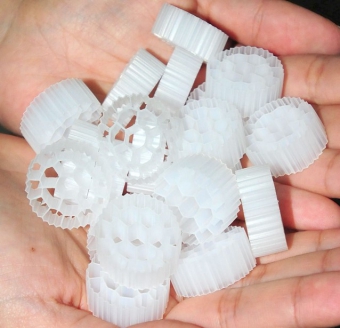

“Biological Carrier” in the Aeration Tank

“Biological Carrier” in the Aeration Tank

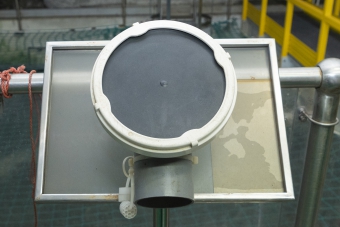

Air Diffuser in the Aeration Tank

Air Diffuser in the Aeration Tank

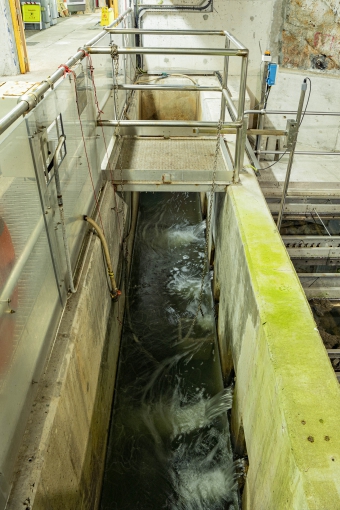

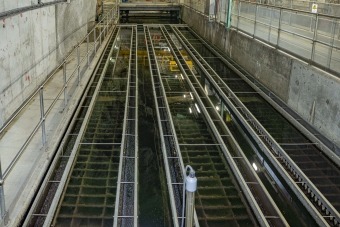

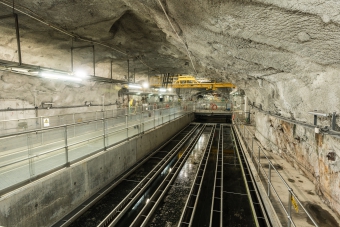

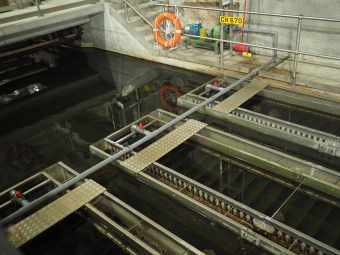

Final Sedimentation Tank

Final Sedimentation Tank

Treated sewage and activated sludge are separated in the final sedimentation tanks. In the sedimentation tanks, the lighter foam and floatable solids, referred to as scum, rise to the surface and are skimmed off by scum flight skimmers. The heavier solids, mostly composed of activated sludge, settle at the bottom of the sedimentation tanks and are removed by sludge flight scrapers to hoppers. A controlled portion of the activated sludge is fed back to the aeration tank to maintain adequate micro-organism population for biological treatment. The remaining portion (Surplus Activated Sludge, SAS) is pumped to a separate facility for dewatering. The retention time at final sedimentation tank is about 4 hours.

The final sedimentation tanks of Stanley Sewage Treatment Works adopt rectangular design, equipped with lamellar separators which increase the settling efficiency, thus reducing tank size.

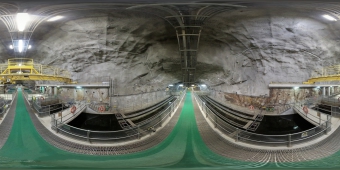

Final Sedimentation Tank (360° View)

Final Sedimentation Tank (360° View)

Final Sedimentation Tank

Final Sedimentation Tank

Final Sedimentation Tank

Final Sedimentation Tank

Final Sedimentation Tank

Final Sedimentation Tank

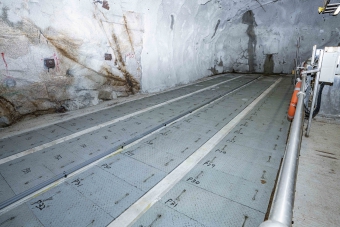

Disinfection Area

Disinfection Area

After final sedimentation, the effluent is disinfected by sodium hypochlorite solution. Multi-point dosing method is adopted at Stanley Sewage Treatment Works to reduce dosage of sodium hypochlorite solution and have less total residual chlorine.

Finally, the disinfested effluent is discharged to the waters southeast of the Stanley Peninsula via a 0.6 metres in diameter, 2.3 kilometres long submarine outfall.

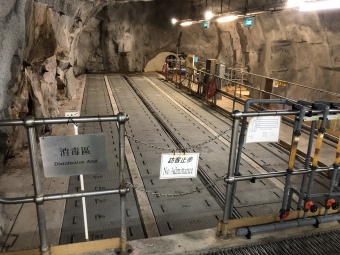

Disinfection Area

Disinfection Area

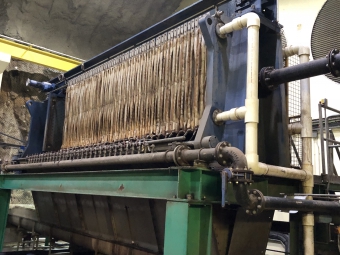

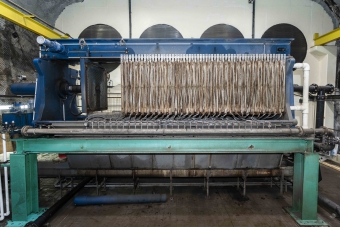

Membrane Filter Press

Membrane Filter Press

The settled sludge and scum collected at final sedimentation tank will be pumped to holding tanks and mixed with polymer before dewatering by membrane filter press to achieve a minimum dryness of 30%.

The dewatered sludge would then be transported using sealed containers to T•PARK sludge treatment facility. The capacity of each sludge skip is 10 cubic metres.

Membrane Filter Press

Membrane Filter Press

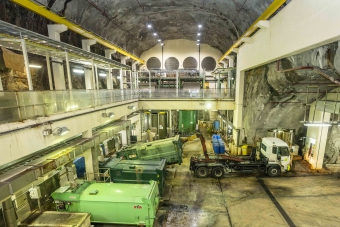

Sludge Treatment Facilities

Sludge Treatment Facilities



Schools and relevant organisations are welcome to visit Stanley Sewage Treatment Works through prior application. For details, please visit the following website:
